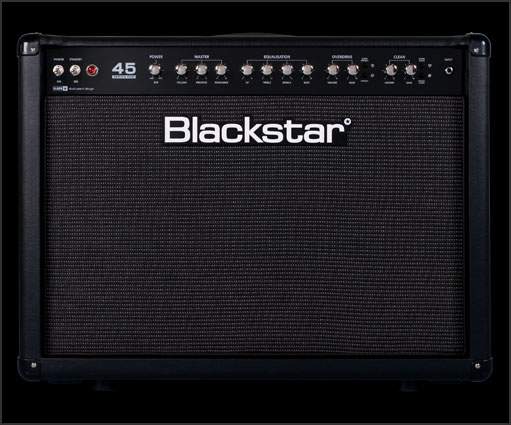

Blackstar Series One 45 Combo

Post by MusashiChan on Mon Jun 07, 2010 6:59 pm

By switching both preamplifier and power amplifier parameters the Series One 45W delivers both Class A style tones with a bell-like ring and classic push-pull crunch depending on the mode selected. The ISF control removes the limitations of traditional designs allowing you to tune the tone to exactly the sound you are looking for.
DPR can reduce the power down to 4.5W and MIDI switching and a series effects loop make this the ultimate pro’s combo
.
• 45W Watt combo with built-in DPR power reduction
• 1 x ECC82, 3 x ECC83, 2 x EL34 valves
• Clean channel with Warm (Plexi) and Bright (Class A) type modes
• Overdrive channel with Crunch and Super Crunch modes
• ISF equipped tone control section
• Presence control
• Master Volume
• Series effects loop
• MIDI switching
• Speaker emulated output




For video demos : http://www.blackstaramps.co.uk/products/seriesone/s1video.html
avatar
MusashiChan
Admin

Posts : 237
Join date : 2010-06-06
Age : 42
Location : Lyon (FRANCE)

View user profile http://musashichan.com/

Back to top Go down

Re: Blackstar Series One 45 Combo

Post by Rich09 on Mon Aug 05, 2013 9:50 pm

Hi,
I am servicing a series one 45 combo that has a percistent hum when the jack is plugged in. It appears to be a bad filter because turning the volumes off has no effect. I am a trained electronics tech, with almost 30 years experience.
So, I am in need of a schematic for this model. Can you help?
Thanks,
Rich

Rich09

Posts : 1
Join date : 2013-08-05

View user profile
